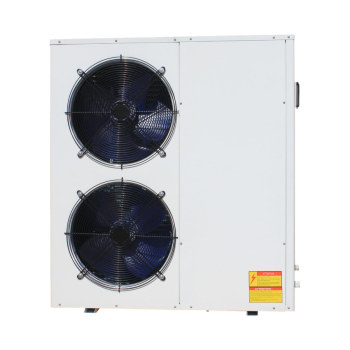

16KW DC Air to Water Heat Pumps(SHAW-16CH-1)
- group name
- DC Inverter Heat Pumps
- Min Order
- 5 piece
- brand name
- Suoher Inverter Heat Pumps Manufacturer
- model
- SHAW-16CH-1
- Nearest port for product export
- Shunde, Nansha
- Delivery clauses under the trade mode
- FOB
- Acceptable payment methods
- T/T
- update time
- Thu, 21 Nov 2024 16:34:52 GMT
Paramtents
Net size 1110*460*1250(mm)
Power supply 380V/3PH/50Hz
Net weight 135KG
Gross weight 145KG
DC Fan motor 50W*2
Circulation pump Optional
Noise 58dB(A)
Compressor 1
Packging & Delivery
- 114cm x47cm x138cm
-
Min Order5 piece
Briefing
High efficiency tube in shell
Electronic expansionn valve
380V/3PH/50Hz
Detailed
1. DC inverter heat pumps for heating, cooling and hot water.
2. Working mode: heating only
3. 14KW, 16KW heating capacity.
4. Receives ON/OFF signal from room thermostat, master controller and smartgrill system, to save more energy.
5. Heating curves for more accurate temperature control.
6. With control for back-up electric heater.
7. With control for 4-way valve to switch between heating/cooling and hotwater circuits.
8. Built-in energy-class A circulating pump.
9. Built-in water flow switch.
10. Built-in auto air discharge valve.
11. Automatically variable fan speed in 3 speeds to optimize efficiency.
12. Fast plugs for wiring between indoor unit and outdoor unit.
13. Low noise design with noise jacket for compressors, low noise fans andstrong casing to reduce vibration and noise.
14. We offer OEM service including different components, casing design,painting color, controller functions etc.
|
|
Model |
|
SHAW-14CH |
SHAW-16CH |
SHAW-14CH-1 |
SHAW-16CH-1 |
|---|---|---|---|---|---|---|
|
Specification |
Heating Capacity |
KW |
12.9 |
16.8 |
14.5 |
17.8 |
|
Heating power input |
KW |
2.88 |
4.39 |
3.54 |
4.52 |
|
|
Hot water supply |
L/h |
277 |
360 |
310 |
380 |
|
|
Rated current |
A |
13.09 |
19.95 |
5.38 |
6.87 |
|
|
COP |
|
4.48 |
3.83 |
4.10 |
3.94 |
|
|
Max. water temperature |
℃ |
60 |
||||
|
Rated water temperature |
℃ |
55 |
||||
|
Water flow |
m3/h |
2.30 |
2.70 |
2.40 |
2.70 |
|
|
Water pressure drop |
Kpa |
28 |
30 |
28 |
30 |
|
|
Net weight |
kg |
131 |
135 |
131 |
135 |
|
|
Gross weight |
kg |
141 |
145 |
141 |
145 |
|
|
Noise |
dB(A) |
58 |
58 |
58 |
58 |
|
|
Water connections |
Inch |
1" |
||||
|
Power supply |
|
220V/1PH/50Hz |
380V/3PH/50Hz |
|||
|
Net dimensions |
mm |
1110*460*1250 |
||||
|
Packing dimensions |
mm |
1140*470*1380 |
||||
|
Standard components |
Compressor |
Brand |
GMCC |
Gree |
Panasonic |
|
|
Quantity |
1 |
2 |
1 |
|||
|
Condenser |
High efficiency tube in shell |
plate heat exchanger |
High efficiency tube in shell |
|||
|
Evaporator |
Hydrophilic aluminum foil + internal thread copper pipe |
|||||
|
4-way valve |
Yes |
|||||
|
Expansion valve |
Electronic expansionn valve |
|||||
|
Fan motor |
50W*2 |
|||||
|
Cabinet |
Galvanized white metal sheet |
|||||
|
Controller |
Chinese brand large LCD screen controller |
|||||
|
High pressure switch |
4.2/3.6MPa |
|||||
|
Low pressure switch |
0.02/0.15MPa |
|||||
|
Working mode |
Heating only |
|||||
|
Refrigerant |
R32 |
|||||
|
Circulation pump |
Optional |
|||||
