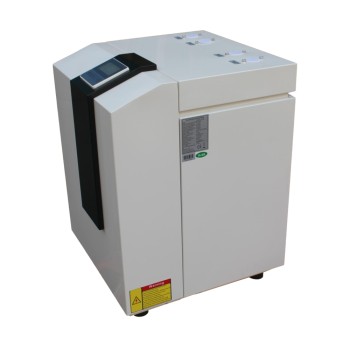

10KW Water Source Heat Pumps(SHWW-10Y)
- group name
- Water & Ground Source Heat Pumps
- Min Order
- 5 piece
- brand name
- Suoher Inverter Heat Pumps Manufacturer
- model
- SHWW-10Y
- Nearest port for product export
- Shunde, Nansha
- Delivery clauses under the trade mode
- FOB
- Acceptable payment methods
- T/T
- update time
- Thu, 21 Nov 2024 19:22:23 GMT
Paramtents
Net size 560*470*675(mm)
Power supply 220V/1PH/50Hz
Net weight 72KG
Gross weight 81KG
Circulation pump Optional
Working mode Only heating
Noise 40db
Packging & Delivery
- 59cm x50cm x80cm
-
Min Order5 piece
Briefing
Detailed
1. Newdesign, new visible screws outside.
2. Heatingonly or heating/cooling.
3. Allcasing panels are easy to remove for maintenance.
4. Lownoise design, the compressor system is isolated from bottom plate with softrubber mounts.
5. Noisejacket for compressor.
6. Pinvalve is easily accessible for maintenance.
7. Withwater flow switch.
8. Withdrain pipes for heat exchangers.
9. Tube-in-shellheat exchangers for heating only units and plate heat exchangers forheating/cooling units.
10. Canwork with room thermostat, master controller, or smart grill signal.
11. Built-inEnergy Class A circulating pump as standard.
12. Weoffer
OEM/ODM service.
|
|
Model |
|
SHWW-4Y |
SHWW-6Y |
SHWW-10Y |
|---|---|---|---|---|---|
|
Specification |
Heating capacity |
KW |
4 |
6.5 |
10.2 |
|
Heating power input |
KW |
0.9 |
1.46 |
2.3 |
|
|
Rated current |
A |
4.09 |
6.64 |
10.45 |
|
|
COP |
|
4.44 |
4.45 |
4.43 |
|
|
Max. water temp. |
℃ |
60 |
|||
|
Rated water temp. |
℃ |
55 |
|||
|
Water flow (using side) |
m3/h |
0.7 |
1.1 |
1.8 |
|
|
Water flow (ground source) |
|
0.9 |
1.3 |
2.0 |
|
|
Net weight |
kg |
58 |
66 |
72 |
|
|
Gross weight |
kg |
65 |
74 |
81 |
|
|
Noise |
db |
35 |
38 |
40 |
|
|
Connection pipe |
mm |
3/4" |
|||
|
Power supply |
|
220V/1PH/50Hz |
|||
|
Net dimension |
mm |
560*470*675 |
|||
|
Package dimension |
mm |
590*500*800 |
|||
|
Standard components |
Compressor |
Brand |
Highly rotary |
||
|
Quantiy |
1 |
||||
|
Condenser |
High efficiency tube in shell |
||||
|
Evaporator |
High efficiency tube in shell |
||||
|
4-way valve |
NO |
||||
|
Expansion valve |
Electronic expansion valve |
||||
|
Circulation pump |
Optional |
||||
|
Cabinet |
Galvanized white metal sheet |
||||
|
Controller |
LCD |
||||
|
High pressure switch |
3.0/2.4MPa |
||||
|
Low pressure switch |
0.02/0.15MPa |
||||
|
Water flow switch |
No |
||||
|
Pressure gauge |
Yes (high pressure gauge) |
||||
|
Working mode |
Only heating |
||||
|
Refrigerant |
R417A |
||||
